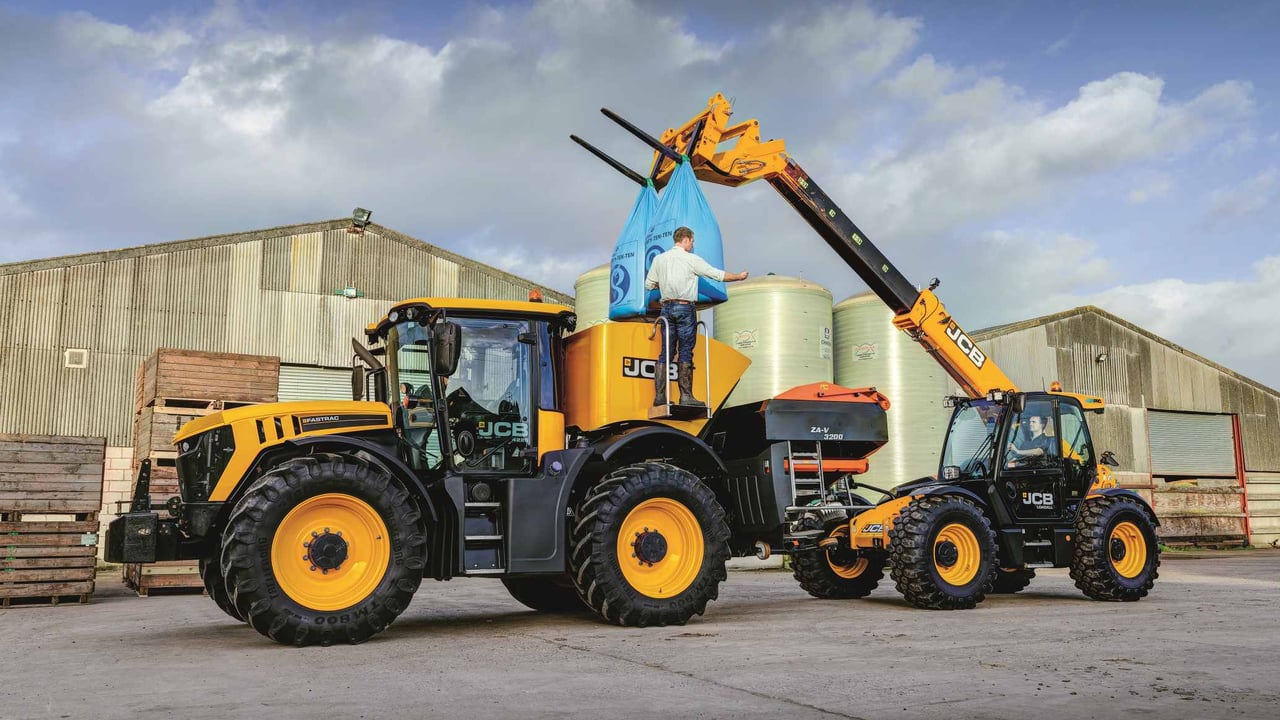

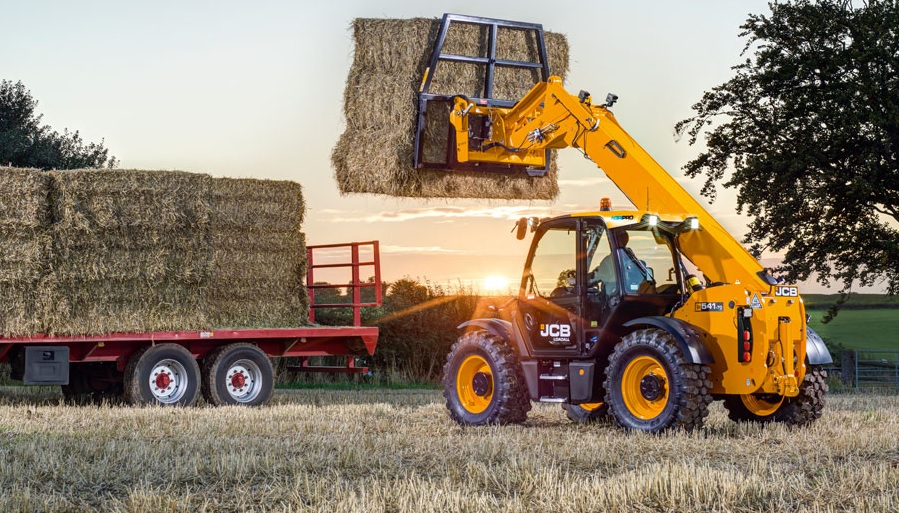

JCB has launched new Loadall AGRI Pro telescopic handlers featuring a World-first transmission that combines the best characteristics of powershift and hydrostatic drives.
The unique DualTech VT transmission features in the 7m premium-specification JCB 531-70, 536-70 and 541-70 AGRI Pro handlers, which have lift capacities of 3.1 tonnes, 3.6 tonnes and 4.1 tonnes.
Key features of the new DualTech VT transmission include:
- Fully hydrostatic drive providing fine stepless speed control up to 19kph from standstill
- Automatic switching to electronically-modulated three-speed powershift above 19kph
- Power and Economy modes to optimise performance, efficiency and running costs
- Flexi mode to provide independent control of engine speed and ground speed
- Selectable full-time 4WD or Auto 2WD over 19kph for optimum driveline efficiency and reduced tyre wear
The new Loadall AGRI Pro machines have precise low-speed manoeuvring control and smooth, progressive response for loading and handling cycles, which the operator can adjust and fine tune to suit different applications and personal preferences.
At the same time, the direct drive powershift element of the transmission gives these new handlers the best climbing and high-speed towing ability.
Features and equipment
Standard specification of the Loadall AGRI Pro handlers includes a seat-mounted servo joystick; high intensity LED work and driving lamps front and rear that provide 360deg ‘daylight’ illumination for maximum safety and productivity in low light; and power brakes for reduced pedal effort with top level braking performance for heavy towing.
A unique regenerative circuit for the boom lift and extend cylinders allows the boom to lower significantly faster than usual, resulting in greater productivity – by as much as 20% when loading – or a 15% reduction in fuel consumption.
The 140-litres/min flow-on-demand system is complemented by a new high flow auxiliary circuit with up to 110-litre/min flow for attachments with hydraulic motors.
JCB’s patented Bucket Control System eliminates repeated joystick movements to shift sticky and fine materials from a bucket or grab; instead, with this feature selected, the operator simply moves the joystick sideways to determine the intensity of the shaking action.
Transmission
The new JCB DualTech VT transmission combines hydrostatic and powershift drive systems using proven components in a single housing. The two modules work in harmony, seamlessly and automatically, to provide easy driving characteristics that can be fine-tuned to optimise driving comfort and performance for different applications.
Hydrostatic drive: The hydrostatic drive module provides fast response, fine speed adjustment and infinitely variable working speeds up to 19kph and is therefore optimised for low-speed operation and controllability, making it quiet and smooth, as well as responsive and power-efficient.
In Drive mode, the operator drives conventionally, pressing the accelerator pedal for engine revs and transmission response. Precision inching is available by pressing the brake pedal but not actually applying the brakes.
In Flexi mode, engine speed and ground speed are controlled individually for the first time on a full-size Loadall. The operator uses an electronic hand throttle to set engine speed and a dial to select ground speed.
When bulk handling or loading, the operator can use this function to set the ideal engine speed for optimum boom hydraulics performance and then focus on ground speed control, steering and the telescopic boom. Limiting the hydrostatic drive speed is ideal for controlled short loading cycles, especially when working in the confines of a cattle shed or grain store.
Flexi mode can also be used to set a fixed ground speed and the revs required for the auxiliary hydraulics to operate equipment such as a bucket sweeper, straw shredder or feed bucket. A ‘memory’ feature ensures the operator can quickly resume these settings.
Powershift drive: Beyond 19kph (11mph), the DualTech VT transmission automatically switches to its powershift mode where electronically modulated clutch packs make barely noticeable shifts between three mechanical gears up to the 40kph (25mph) top speed.
With no torque converter needed, direct drive in each gear makes the most of available torque to deliver quick acceleration, strong climbing ability and the impetus to maintain speed on road inclines. The transmission will skip-shift and short-shift as appropriate and upshifts can be restricted to gears one, two or three for field work.
