New high-end options on the market for John Deere sprayers

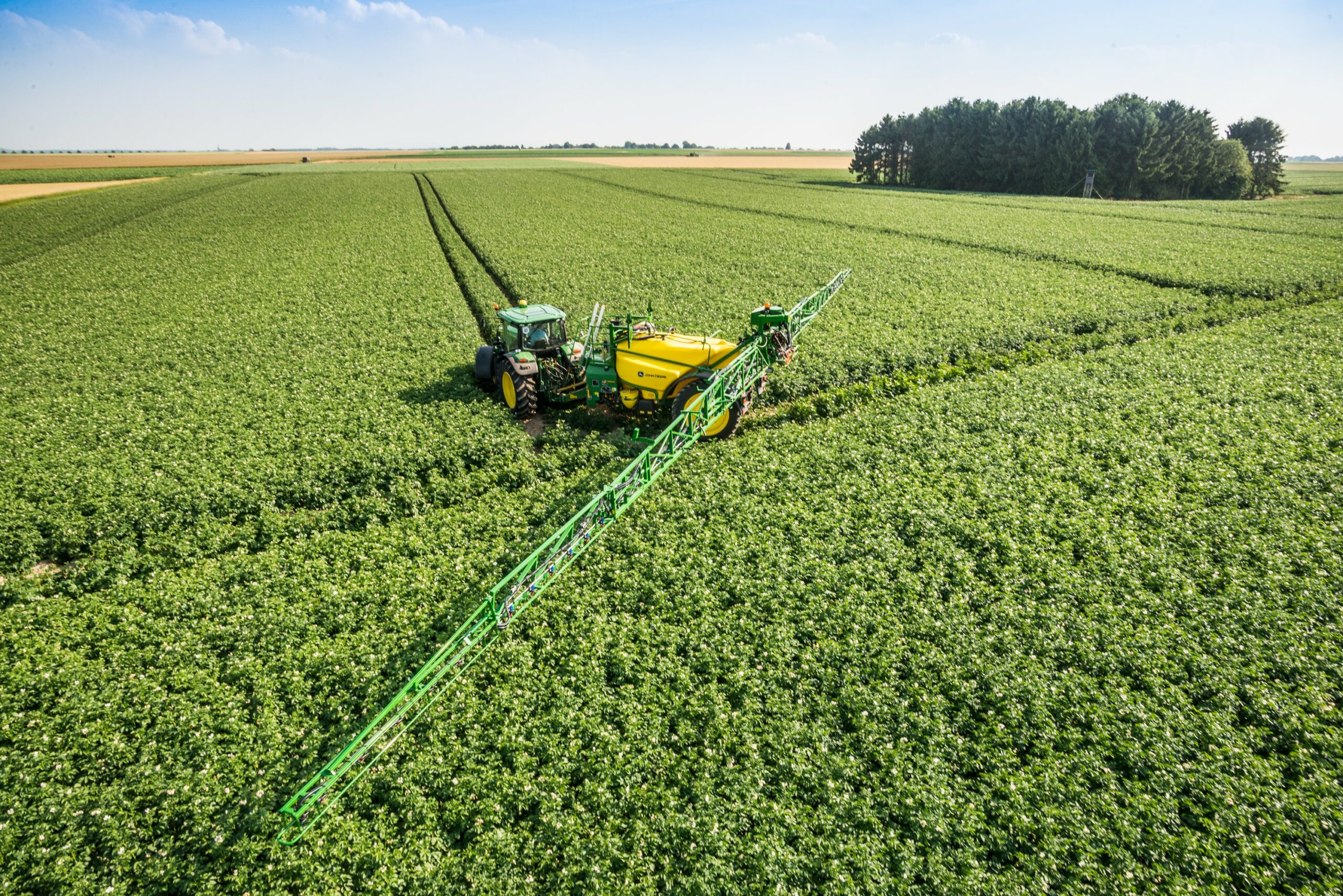

John Deere has announced two new high-end options for its M700 and M900 Series trailed sprayers, which include six models with tank capacities from 2400L to 6200L.

The new options also offer spray booms from 18m to 40m.

The BoomTrac and LED field lighting options are designed to increase the performance and were previously only available on the high-specification M700i and M900i Series models.

The BoomTrac automatic boom levelling and height control system uses ultrasonic sensors to measure the height of the boom above the crop or soil.

If changes in the field or the target surface mean that the boom is no longer level, the system automatically adjusts it to maintain the optimum distance.

As a result, John Deere has said that spray drift caused by excessive boom height is greatly reduced and spray coverage on the target is improved.

When it’s in use, the operator can specify a desired boom height for each nozzle type or choose a different boom height depending on the application or field conditions.

Furthermore, the system is controlled via the tractor’s in-cab GreenStar or CommandCentre display and does not require an additional control panel, which also reduces cab clutter and complexity.

Designed specifically for John Deere sprayers, the control algorithm used for BoomTrac has been formulated to match the dynamics of the company’s spray booms, to provide optimum performance.

In addition, four headland control modes are available, including the ability to raise the boom to avoid obstacles, walls or hedgerows, John Deere said.

John Deere boom lighting kit

The optional boom lighting kit features two high-powered LED lights mounted below the boom’s centre frame assembly.

According to John Deere, these shine a high-intensity white light below the structure, effectively illuminating both the boom itself and the spray pattern below each nozzle.

In this way, the ability to both avoid obstacles during night-time spraying and identify nozzle blockages is greatly improved.

Like the BoomTrac system, switching of the LED boom lights is also achieved via the CommandCentre in-cab display, so no additional controls are necessary.

When compared to systems providing individual lights for each nozzle, the John Deere LED boom lighting kit means that only one light needs to be kept clean on each half of the boom.

According to John Deere, this avoids excessive downtime while still providing excellent overall visibility of the spraying operation.

BoomTrac will be available for both John Deere M700 and M900 Series trailed sprayers from April 2016.

The LED boom lighting kit option will also be available from this April for the M700 models, and from November 2016 for the M900 Series, John Deere announced.
